Product Center Undermount Drawer Slide
Back List

Part-extension runner fixed to 5/8" drawer by pin-fix

Model:YC216H

Technical Specification:

• Partial extension undermount design
• Dynamic load capacity: 25kg
• Material: Zinc coating sheet
• Available size: 250/270/300/350/400/450/500/550/600mm
• Drawer height adjustment range: 0-4mm
• Extremely fluent and silent movement
• Material thickness: 1.5 x 1.5mm
• Tool-free and convenient installation


OEM technical Support Loading capacity 25KG Monthly capacity 1000000 sets 50000 times cycle test Quiet and smooth sliding
Product Details

Description & Features:

Economical concealed drawer slide with half extension and integrated pin for wood drawers. It can be installed in frameless cabinet application for living room, bedroom, kitchen, bathroom and children's room.

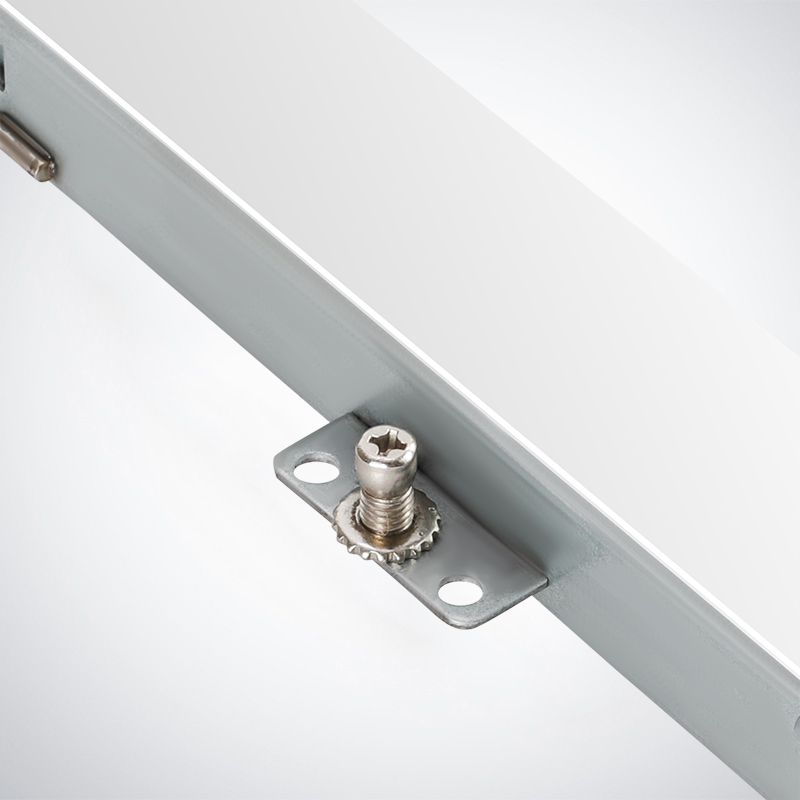

Drawer locating pin integrated with drawer, also for up&down fine tuning.
Popular minimalist style to present a perfect house.
Quick-release is easy to remove, and more convenient to wipe.
Fearless working in the moisture, design for bathroom.
Installation:

Specification:

Code Nominal Length(mm)/Description Units Travel length Min. Cabinet Depth(Standard/Inner) Range of Extension Drawer Thickness Cycle Test Dynamic Adjustment Packaging
(Pair/box)
YC216H-250 250mm(10"),Partial Extension, Soft-close, Frameless Undermount with Pin fixing Pair 107mm 263/263+X Partial Extension 5/8"(16mm) 50000 times 55LBS(25KG) 10
YC216H-270 270mm(11"),Partial Extension, Soft-close, Frameless Undermount with Pin fixing Pair 132mm 283/283+X Partial Extension 5/8"(16mm) 50000 times 55LBS(25KG) 10
YC216H-300 300mm(12"),Partial Extension, Soft-close, Frameless Undermount with Pin fixing Pair 157mm 313/313+X Partial Extension 5/8"(16mm) 50000 times 55LBS(25KG) 10
YC216H-350 350mm(14"),Partial Extension, Soft-close, Frameless Undermount with Pin fixing Pair 207mm 363/363+X Partial Extension 5/8"(16mm) 50000 times 55LBS(25KG) 10
YC216H-400 400mm(16"),Partial Extension, Soft-close, Frameless Undermount with Pin fixing Pair 232mm 413/413+X Partial Extension 5/8"(16mm) 50000 times 55LBS(25KG) 10
YC216H-450 450mm(18"),Partial Extension, Soft-close, Frameless Undermount with Pin fixing Pair 253mm 463/463+X Partial Extension 5/8"(16mm) 50000 times 55LBS(25KG) 10
YC216H-500 500mm(20"),Partial Extension, Soft-close, Frameless Undermount with Pin fixing Pair 283mm 513/513+X Partial Extension 5/8"(16mm) 50000 times 55LBS(25KG) 10
YC216H-550 550mm(22"),Partial Extension, Soft-close, Frameless Undermount with Pin fixing Pair 333mm 563/563+X Partial Extension 5/8"(16mm) 50000 times 55LBS(25KG) 10
YC216H-600 600mm(24"),Partial Extension, Soft-close, Frameless Undermount with Pin fixing Pair 353mm 613/613+X Partial Extension 5/8"(16mm) 50000 times 55LBS(25KG) 10
