Full extension synchronous concealed pin-fix slide for 3/4" drawer

Model:YL319H

Technical Specification:

• Full extension and synchronous undermount design
• Dynamic load capacity: 35kg
• Material: Zinc coating sheet
• Material thickness: 1.0 x 1.5 x 1.8mm
• Available size: 300/350/400/450/500/550mm
• Drawer height adjustment range: 0-4mm
• Simultaneous, extremely smooth, silent and closing softly
• Tool-free quick installation


POM Toothed Gear Loading capacity 35KG Monthly capacity 1000000 sets 50000 times cycle test Quiet and smooth sliding
Product Details

Description & Features:

Smooth-running improves your quality of living in a new home. Youlisi 3-fold bottom-mounted drawer slides are elegantly hidden at the bottom of the drawer, maintaining the best appearance when drawer open. The proven injection molding experience, with complete high precision mold production lines, Youlisi’s injection molding products are smooth and shiny, which largely controls and reduces the risk of burrs and fracture deformation of functional parts for drawer slide.It gives always effortless motion and soft-close motion. Slides are invisible when the drawer is totally open.

It can be extended out to expose 100% of inner drawer
Synchronized mechanism POM rack
Mute and noise reduction, with high-quality POM rollers.

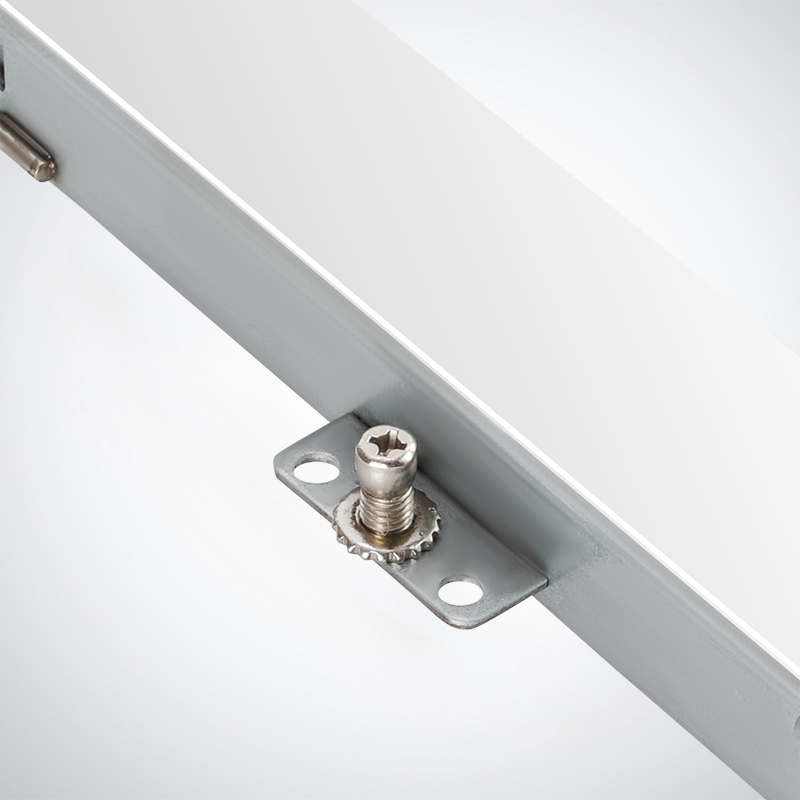

Drawer locating pin integrated with drawer, also for up&down fine tuning.
Installation:

Specification:

Slide Code Nominal Length(mm)/Description Units Travel length Min. Cabinet Depth
(Standard/Inner)
Range of Extension Side Panel Cycle test Dynamic Load Packaging
(Pair/box)
YL319H-300 300mm(12"),Full Extension, Soft-close, Concealed Undermount, Synchronous Slide With Pin Pair 248mm 313/313+X Full Extension 5/8" - 3/4"
(17-19mm)
50000 times 75LBS(35kg) 10
YL319H-350 350mm(14"),Full Extension, Soft-close, Concealed Undermount, Synchronous Slide With Pin Pair 298mm 363/363+X Full Extension 5/8" - 3/4"
(17-19mm)
50000 times 75LBS(35kg) 10
YL319H-400 400mm(16"),Full Extension, Soft-close, Concealed Undermount, Synchronous Slide With Pin Pair 348mm 413/413+X Full Extension 5/8" - 3/4"
(17-19mm)
50000 times 75LBS(35kg) 10
YL319H-450 450mm(18"),Full Extension, Soft-close, Concealed Undermount, Synchronous Slide With Pin Pair 398mm 463/463+X Full Extension 5/8" - 3/4"
(17-19mm)
50000 times 75LBS(35kg) 10
YL319H-500 500mm(20"),Full Extension, Soft-close, Concealed Undermount, Synchronous Slide With Pin Pair 448mm 513/513+X Full Extension 5/8" - 3/4"
(17-19mm)
50000 times 75LBS(35kg) 10
YL319H-550 550mm(22"),Full Extension, Soft-close, Concealed Undermount, Synchronous Slide With Pin Pair 498mm 563/563+X Full Extension 5/8" - 3/4"
(17-19mm)
50000 times 75LBS(35kg) 10
