3-1/4 Inch Caster Wheel With Top Plate Mounting - Brakes Available

Model:301A 301B 301C 301D

Technical Specification:

• Housing:Zinc Alloy With Chrome-plated /Plastic Plated Finish
• Wheel Materials: Nylon(PA)
• Mount size: 1-7/8” by 1-7/8” Top Plate
• Screw hole spacing: 1-3/8” by 1-3/8” for M5/M6 Screw (screws not included)
• Wheel size: 3-1/4" (82mm)
• 77 pound/ 55 pound capacity per caster
Smooth and labor-saving Premium Material Suitable for All Kinds of Ground High Bearing Capacity Fast Delivery
Product Details

Description & Features:

Thick plate 2mm full-thickness, galvanized cold-rolled steel, four-hole positioning, good load distribution, undeformed in life.
Zinc alloy reinforced housing, sturdy and durable, zinc alloy wheel frame is chrome-plated, elegance, anti-corrosion and rust-proof. Nylon housing is also available, it’s economic option.
Tubular rivet struction holds dual-wheel together, providing more durability and capacity over standard models. Plain bushing which means wheel is not easy to fall off when over-weight is applied, and with ABS decorative cover, multi-color options, various application scenarios.
Fine workmanship, smooth and mute. There is a matte particle texture on nylon tread, which is not easy to slip, and the slding mute.
Brakes function, safe and worry-free: lightly step down the brake to lock, it can be effectively fixed and prevent it slipping.

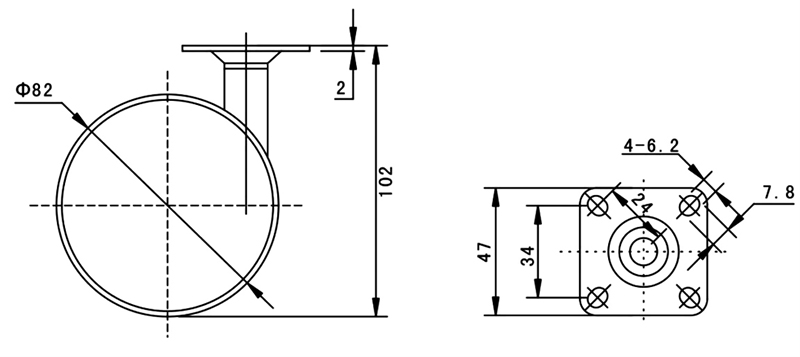

Installation:

Specification:

Caster Code Description Unit Wheel Diameter Mounting Height Wheel
Material
Load Capacity Wheel Width Caster Frame Application Color Package
301A Top Plated Swivel Castor Wheels with Brake Piece Φ82mm
(3 1/4")
4 1/64″
(102mm)
ABS+PA
+ZnAlMg

77LBS
(35kg)
44.5mm Alloy Chromed Plating Wear-resistant Nylon(PA) casters, metal bracket chromed surface, widely used in furniture, sofa, shopping carts, flower stands, cribs, etc. Red、Grey
White、Yellow
Teak
80pc/ctn
301B Top Plated Swivel Castor Wheels W/O Brake Piece Φ82mm
(3 1/4")
4 1/64″
(102mm)
ABS+PA
+ZnAlMg

77LBS
(35kg)
44.5mm Alloy Chromed Plating Wear-resistant Nylon(PA) casters, metal bracket chromed surface, widely used in furniture, sofa, shopping carts, flower stands, cribs, etc. Red、Grey
White、Yellow
Teak
80pc/ctn
301C Top Plated Swivel Castor Wheels with Brake Piece Φ82mm
(3 1/4")
4 1/64″
(102mm)
ABS+PA 55LBS
(25kg)
44.5mm Plastic Plating
Plastic Grey
Wear-resistant nylon wheels, beautiful colors, environmentally friendly ABS, casters for cabinets, flower stands, cribs, etc. Red、Grey
White、Yellow
Teak
80pc/ctn
301D Top Plated Swivel Castor Wheels W/O Brake Piece Φ82mm
(3 1/4")
4 1/64″
(102mm)
ABS+PA 55LBS
(25kg)
44.5mm Plastic Plating
Plastic Grey
Wear-resistant nylon wheels, beautiful colors, environmentally friendly ABS, casters for cabinets, flower stands, cribs, etc. Red、Grey
White、Yellow
Teak
80pc/ctn
